Forestry Solutions

Realizing remote support
even in a deep forest

  • Solalink's image

Real-time communication using communications satellites
makes forestry sites visible.

Issue

Issues faced at forestry sites where mobile phones and internet access are unavailable

  • Work is left to on-site employees, making it difficult to manage.
  • Managers have no choice but to accept the results from the field as they are, making it difficult to make adjustments to achieve sales targets.
  • Manpower shortages and an aging workforce create operational uncertainty.
  • Responding too late when an accident occurs.

Solution

Realizing
real-time communication
through audio and video

Solalink

>> When viewing on a smartphone, tap the image to enlarge it.

  • Labor management and safety management

    Labor and attendance management, which was previously difficult when located far from the site, can now be done remotely. It also makes it easier to keep track of personnel allocation.

    Labor management and safety management

  • Emergency response

    In the event of an accident, injury, or other emergency, speed is crucial. This allows for immediate cooperation and response to ensure safety and mitigate damage.

    Emergency response

  • Progress check and instruction support

    Managers can check the status of work and lumber, which would be difficult to grasp if left to the field. SolaLink supports accurate instructions and progress management.

    Progress check and instruction support

  • In the event of a large-scale disaster

    It can be used as a means of communication in emergencies, not only at forestry sites but also during large-scale disasters.

    In the event of a large-scale disaster

Group of equipment for SolaLink

Equipment arranged by SOLABLE Trading

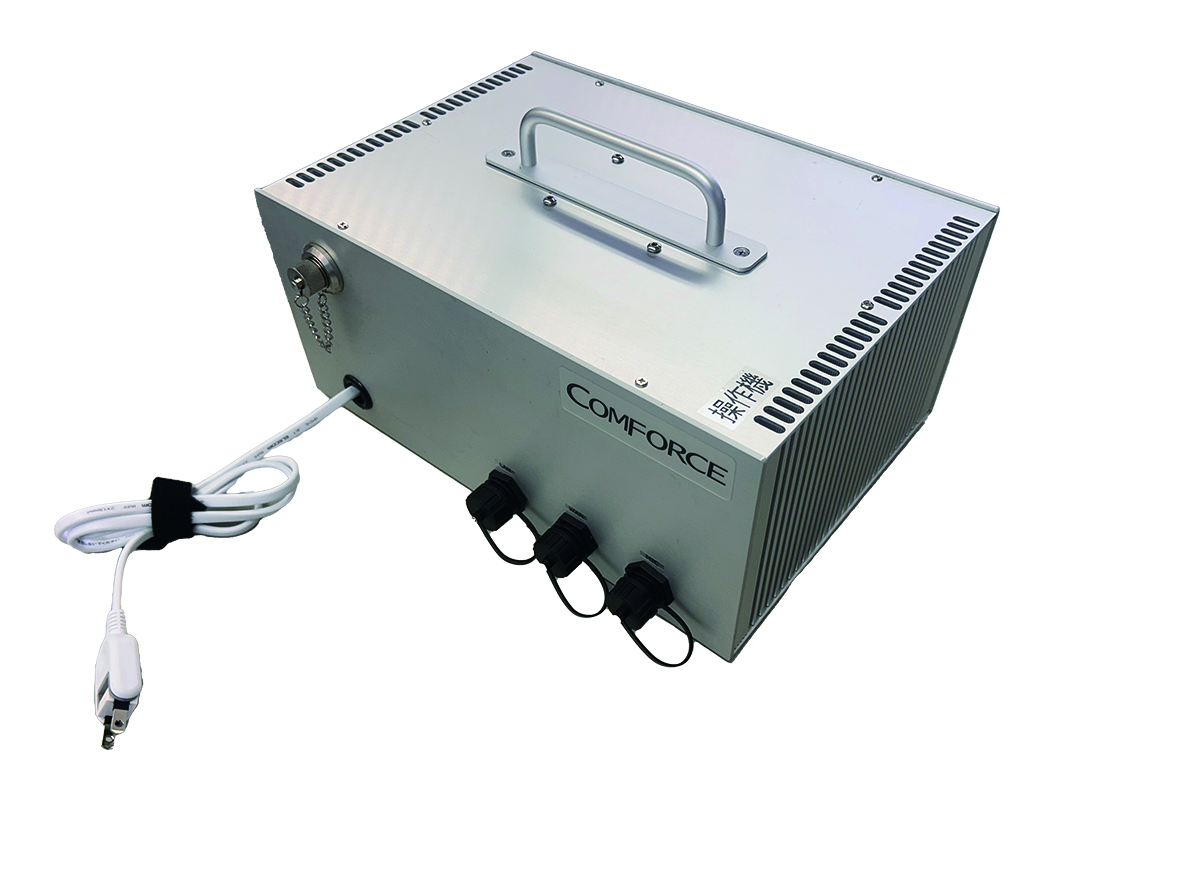

  • Control BOX 1

    Control BOX 1

    SIZE H155mm×W231mm×D330mm (excluding protrusions)
    WEIGHT Approximately 6.6kg

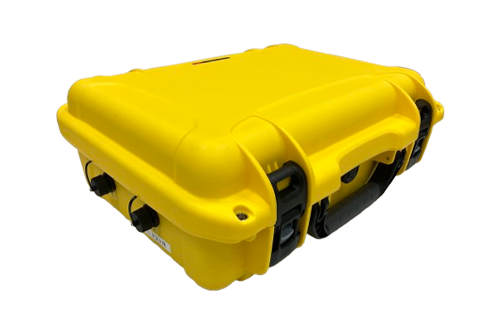

  • Control BOX

    Control BOX 2

    SIZE H180mm×W370mm×D480mm (excluding protrusions)
    WEIGHT Approximately 6.0kg
    Waterproof specification

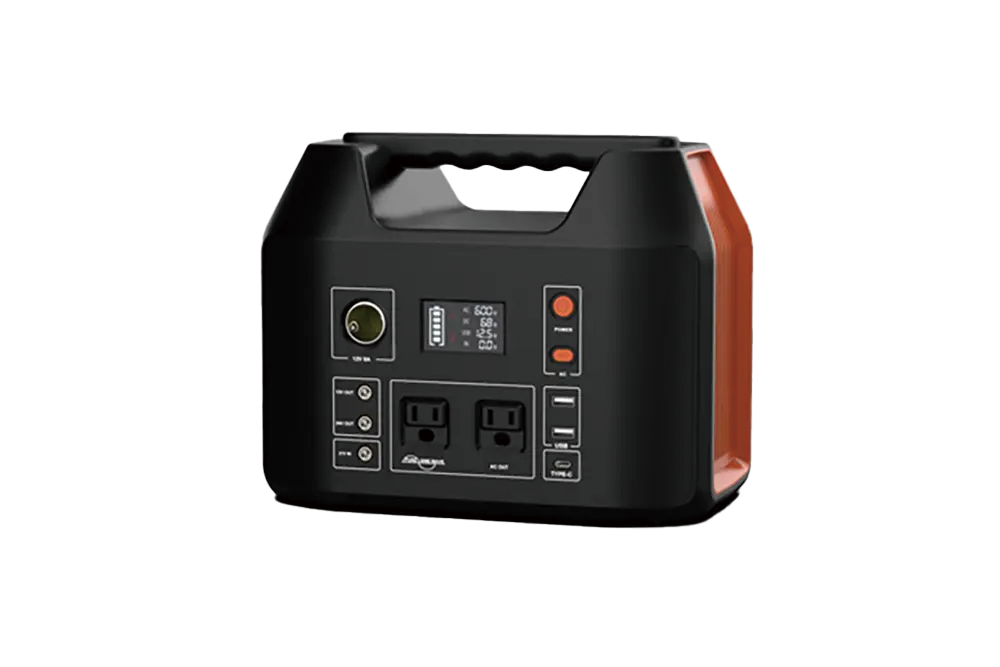

  • Portable Battery
    (Equivalent to Icom R500) *1

    SIZE H285mm×W220mm×D170mm
    WEIGHT Approximately 5.2kg

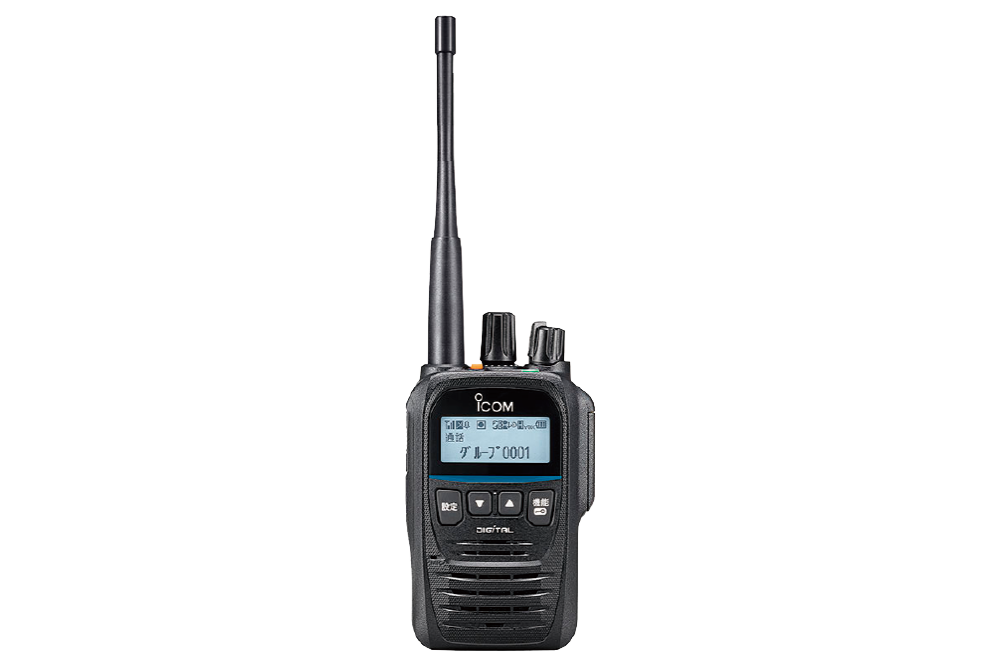

  • Walkie-talkie Handset
    Icom IC-D70

    SIZE H92mm×W56mm×D29mm
    WEIGHT Approximately 236g

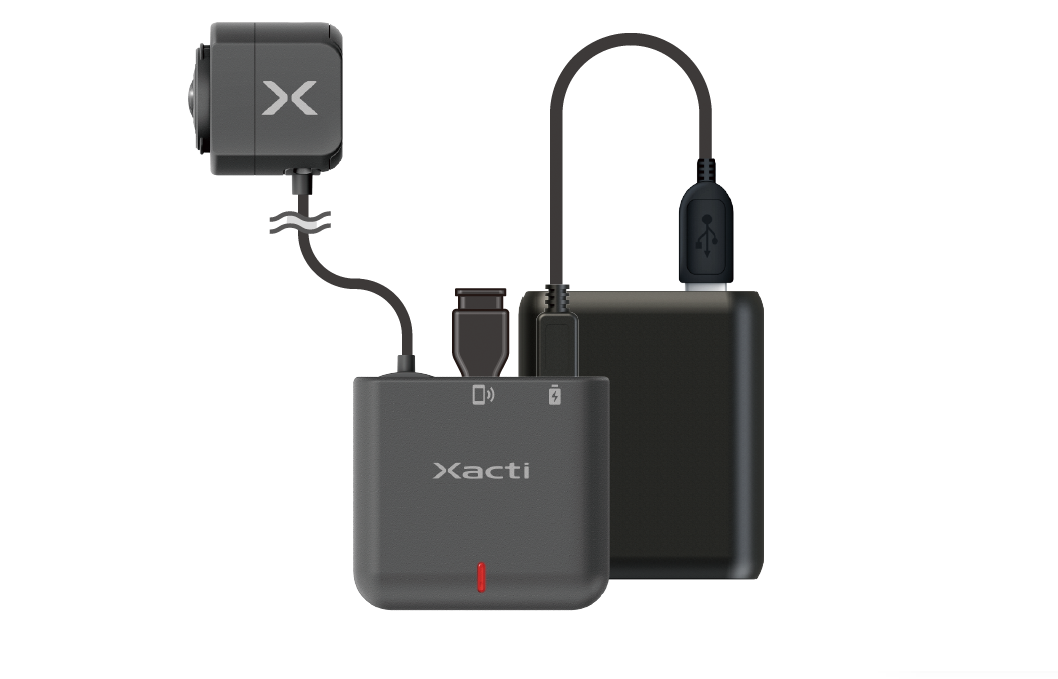

  • Wearable Camera
    Xacti CX-WL100W

    SIZE H26mm×W35mm×D35mm
    WEIGHT Approximately 30g

Equipment arranged by the customer

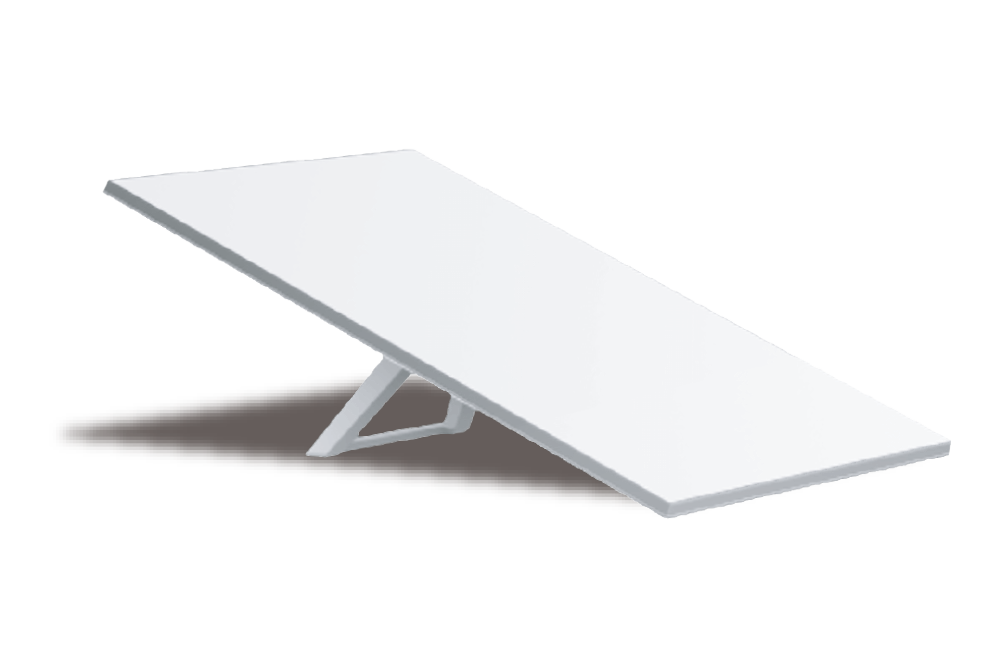

  • Satellite Communication Antenna *2

    SIZE H298.5mm×W259mm×D38.5mm
    WEIGHT 1.16kg*3
    Built-in router

*1 The actual equipment will be a commercially available model with equivalent specifications.

*2 Customers must sign a contract for the satellite communication system. SOLABLE Trading Inc. will support customers about the contract procedure.

*3 Weight includes kickstand and does not include 15m power cable.

* The system equipment used may be subject to change in the future.

SolaLink

Plans to develop collaboration with various devices

  • image01

    Real-time understanding of forest boundaries using drone footage

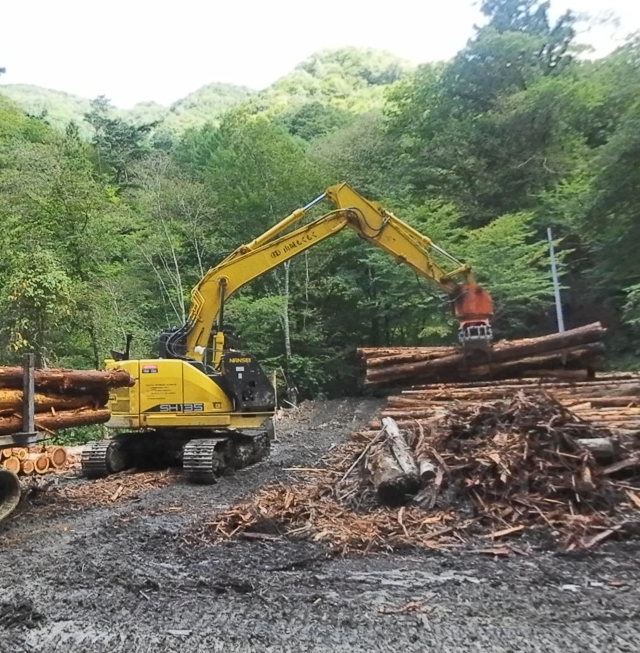

  • Harvesta

    The quality of the lumber is checked at headquarters using data from heavy machinery.

  • image03

    Instantly check workers' vital signs with smartwatches

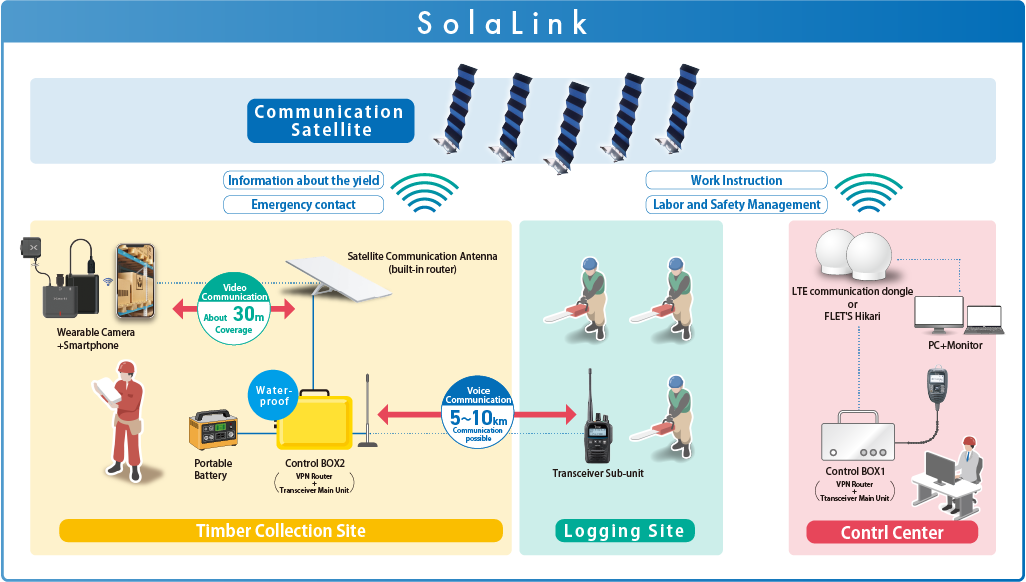

System Environment
Satellite Communication System
*Customers must sign a contract for the satellite communication system. SOLABLE Trading Inc. will support customers about the contract procedure.
Headquarters / Head Office
Control BOX1
*When supporting voice communication,
FLET'S Hikari is required
for the headquarters network environment.		 Walkie-talkie base unit (Icom IC-D6005N)
Handy microphone (with speaker)
VPN router (equivalent to YAMAHA RTX830)
PC / Monitor *1 *The PC must be connected to the Internet.
On-site side
Control BOX2 *2 Walkie-talkie Base Unit (Icom IC-D6005N)
VPN router (Equivalent to YAMAHA RTX830)
Walkie-talkie Handset Equivalent to Icom IC-D70 : 2-5 units
External antenna for walkie-talkie Icom 1.2m antenna, 0.7m high, magnetic base, 5m coaxial cable
Portable Battery Equivalent to Icom R500
Wearable Camera *1 Xacti CX-WL100W *CX-WL100W purchase + XBP (subscription) plan recommended

*1 This is only required when transmitting videos.
*2 When supporting voice communication, the headquarters network environment requires FLET'S Hikari.
