StereoCamera

Logistics/Factory Efficiency Solutions

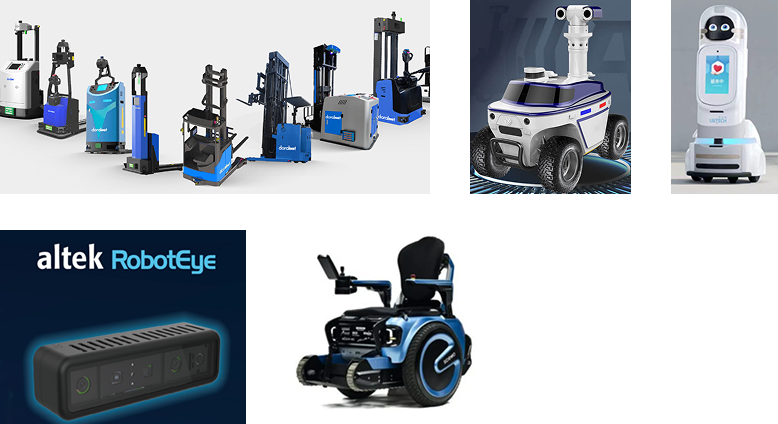

Stereo Cameras are used in warehouses, factories, restaurants, farms, medical facilities, etc. for unmanned transport robots and distance/obstacle detection.
Altek's Stereo Camera "Robot Eye" provides optimal cost performance to improve the reliability and accuracy of AGVs (Automated Guided Vehicles)/AMRs (Autonomous Mobile Robots).

■ "Robot Eye" has been adopted for AGV/AMR applications around the world.
It is currently being used in the logistics field of a major mail order company in the United States.

■ Equipped with a proprietary ASIC, the camera's firmware can be flexibly customized to suit the application device.
SOLABLE Trading is a distributor of altek's stereo camera "Robot Eye".


About Altek Corporation
A Taiwan-based company (founded in 1996) engaged in research, development, manufacturing, and sales of digital camera modules, digital cameras, and related components.
Based on digital imaging technology, the company operates in a wide range of fields, has extensive experience and a proven track record in the OEM/ODM business, and has consistent technical capabilities from optical design to hardware and software integration.

Altek website: https://www.altek.com.tw/EN/index

Hardware:

  • IR camera + RGB camera + Dot Projector
  • Dimension: 90mm x 25mm x 25mm
  • Mounting hole and tripod position
  • USB 3.1 Output

SW SDK:

  • OS: Windows 10/11, Linux/Ubuntu
  • UI Feature
  • Live view for IR pairs, RGB and Depth
  • Support snapshot
  • Support recording
  • User guide(s)
  • User calibration

Depth Performance:

  • Working distance: 0.25m ~ 10m
  • Accuracy: 2% @ 2m @80% FoV
【Example of images taken with Altek Viewer】

IR

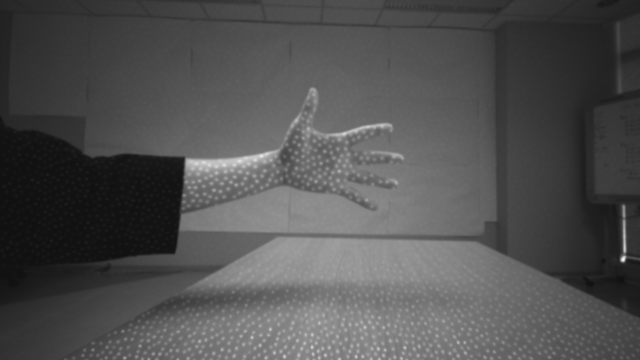

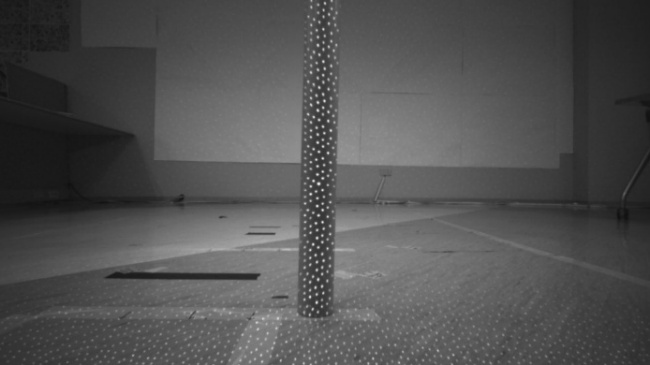

IR1 IR2

Stereo depth 720P

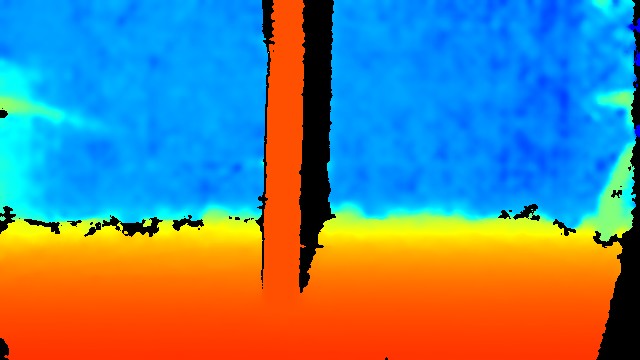

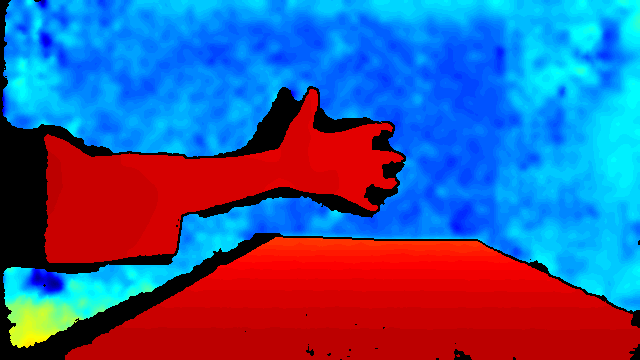

Depth1 Depth2
Robot Eye Specification
SoC SAV605D
Depth processor Altek AL6100
IR Lens HFOV 96.1° VFOV 74.6° DFOV 120°
IR Image Sensor OV9282 (1/4”, 1Mp, Mono, Global shutter)
RGB Lens HFOV 108.5° VFOV 80.8° DFOV 120.1°
RGB Image Sensor OV9782 (1/4”, 1Mp, RGB, Global shutter)
IR Projector (VCSEL) 850nm, HFOV 120° VFOV 80°
Depth Stream 720p @ 30fps
Detection range 30cm to 7m
Baseline 50mm
Data Output USB3.1 (Type C)
Power USB3.1 (Type C)
Dimension 90mm x 25mm x 25mm

SOLABLE Trading will distribute this product mainly to the domestic market.
Please contact us for product inquiries and sales area information.
